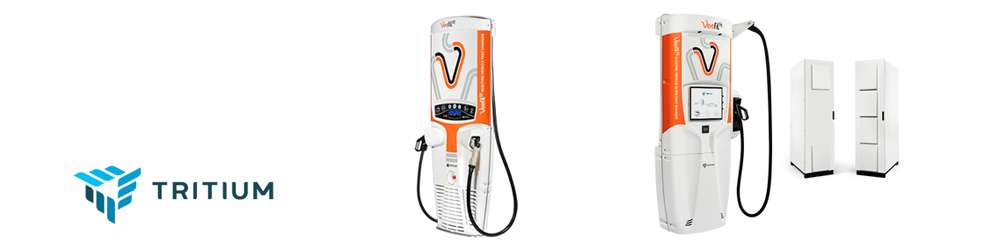

Tritium
Verdek™ is proud to offer flexible, high power, Level 2 and DC charging solutions from Australia’s award-winning company, Tritium. Tritium’s small footprint chargers have a slim design, which allow them to fit easily into most public spaces.
Tritium offers a flexible, responsive and dedicated approach to electric vehicle charging. Established in 2001, and backed by the Australian government and private investors, Tritium has a growing global presence with installations in over 29 countries and offices in three continents.

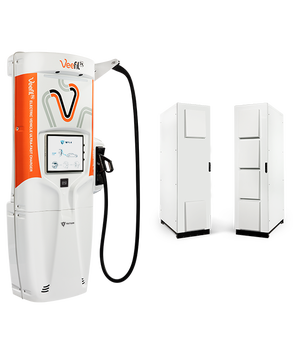

Veefil-PK
Verdek’s Veefil-PK product line from Tritium is ideally suited to traditional fuel stations, motorway rest stops, and convenience stores.
The Veefil-PK 350kW high power charging system can add 350km of range to an electric vehicle in 10 minutes, and can adapt power management behavior according to the changing needs of your customer base.
With the flexibility of different colours and branding design, the Veefil-PK is easily adapted to suit your corporate image.
Key Features:
- Up to 350 kW power output with voltage of 920 Vdc
- CHadeMO and CCS compatible
- OCPP integration
- 24/7 multi-channel global support network
- Operating temperature between -35° C and +50° C for outdoor applications
- Effortless charging
- High energy efficiency
SPECIFICATIONS:
| Connector | CCS Type 1, CCS Type 2 & CHAdeMO Single or dual cable option |
| Output Power | Up to 350kW |
| Ouput Voltage | Up to 920Vdc |
| Output Current | CCS: Up to 500A CHAdeMO: Up to 200A |
| IP Rating | IP65 |
| Efficiency | 98.5% |
| Operating Temperature | -35 °C to +50 °C |
| Credit Card Reader | Optional |
| Dimensions | 1998(H) x 980(W) x 525(D) mm |
| Weight | 260Kg |
| RFID Reader | MIFARE ISO/IEC14443A/B, ISO/IEC15693, ISO/IEC18000-3, FeliCa, NFC, EMV 2.0 |
| Cable Length | 4.3m |
| THD | <5% |
| IK Rating | IK10 |

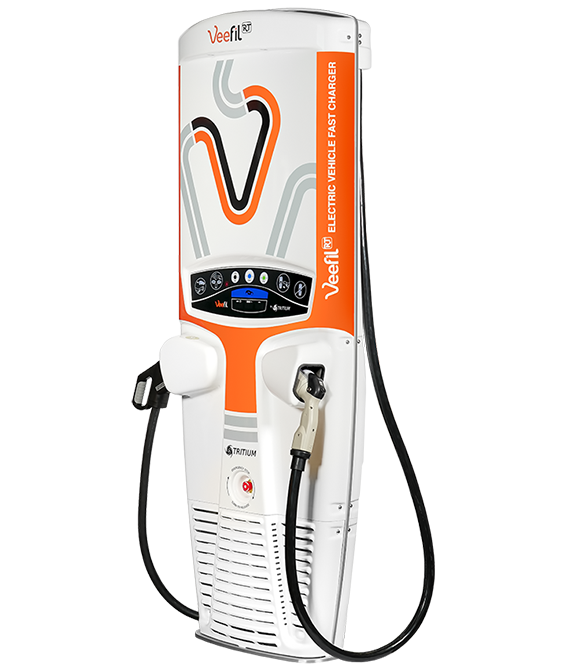

Veefil-RT
The Veefil-RT product line from Tritium has the world’s smallest footprint for an electric vehicle fast charger, offering owners greater flexibility in the choice of installation locations.
This DC Fast charger fits well into compact spaces and existing structures. Easy to install, the Veefil-RT delivers reduced setup costs and a faster installation time, so charging services can be offered sooner.
Verdek’s Veefil-RT solution is a reliable and robust electric vehicle fast charger with an attractive design that is easy to own and operate. Its patented liquid-cooling system ensures maximum product life with minimum maintenance.
Key Features:
- Up to 50 kW power with supply input of 380-480V
- Compact and slim design
- UV resistant exterior
- Operating temperature is -31° F to +122° F for outdoor applications
- CHadeMO and CCS compatible
- OCPP integration
- Low maintenance
- 3-year warranty
SPECIFICATIONS:
| Connectors | CHAdeMO and CCS (Type 1 or 2) |
| Power | Up to 50kW |
| Supply Input | 380-480VAC 3ø |
| Supply Frequency | 50-60 Hz |
| IP Rating | IP65 |
| Efficiency | >92% |
| Power Factor | 0.99 |
| Operating Temperature | -35 °C to +50 °C |
| Network Connection | 3G and Gigabit Ethernet |
| RFID | MIFARE ISO/IEC14443A/B, ISO/IEC15693, ISO/IEC18000-3, FeliCa, NFC, EMV 2.0 |
| Communication Protocol | OCPP 1.5 and 1.6J |
| Weight | 165kg |
| Electrical Protection | Short circuit; Over voltage; RCD |
| Dimensions | 2000(H) x 750(W) x 330(D) mm |
| Freight | 24 units per 20’ container |
| Certification | CE, UL, CHAdeMO, RCM, FCC, IC |
